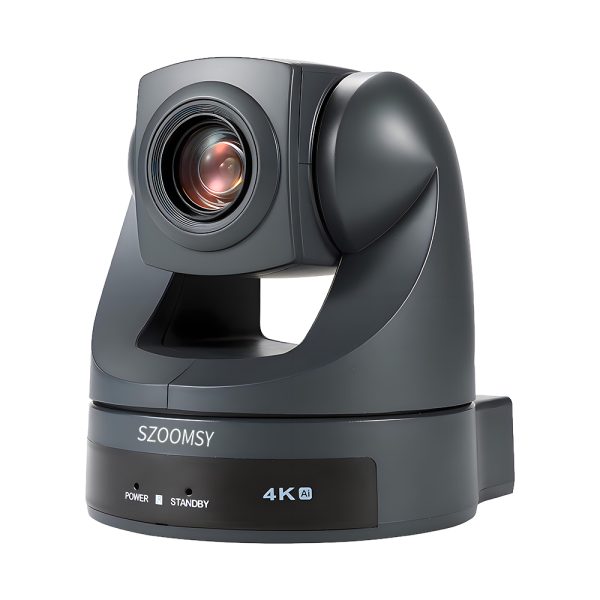

4K Ultra HD PTZ Video Conference Camera

4K UHD Image Quality

SONY 1/2.8-inch 8.5MP sensor, delivering 3840×2160 ultra-clear images.

Video conferencing systems

AI Auto Human Tracking

Intelligent AI tracking automatically follows presenters and subjects for hands-free production.

4K PTZ Camera with AI Auto Tracking

20x Optical Zoom

54.5° wide-angle lens, capturing details from near and far.

AI tracking conference camera

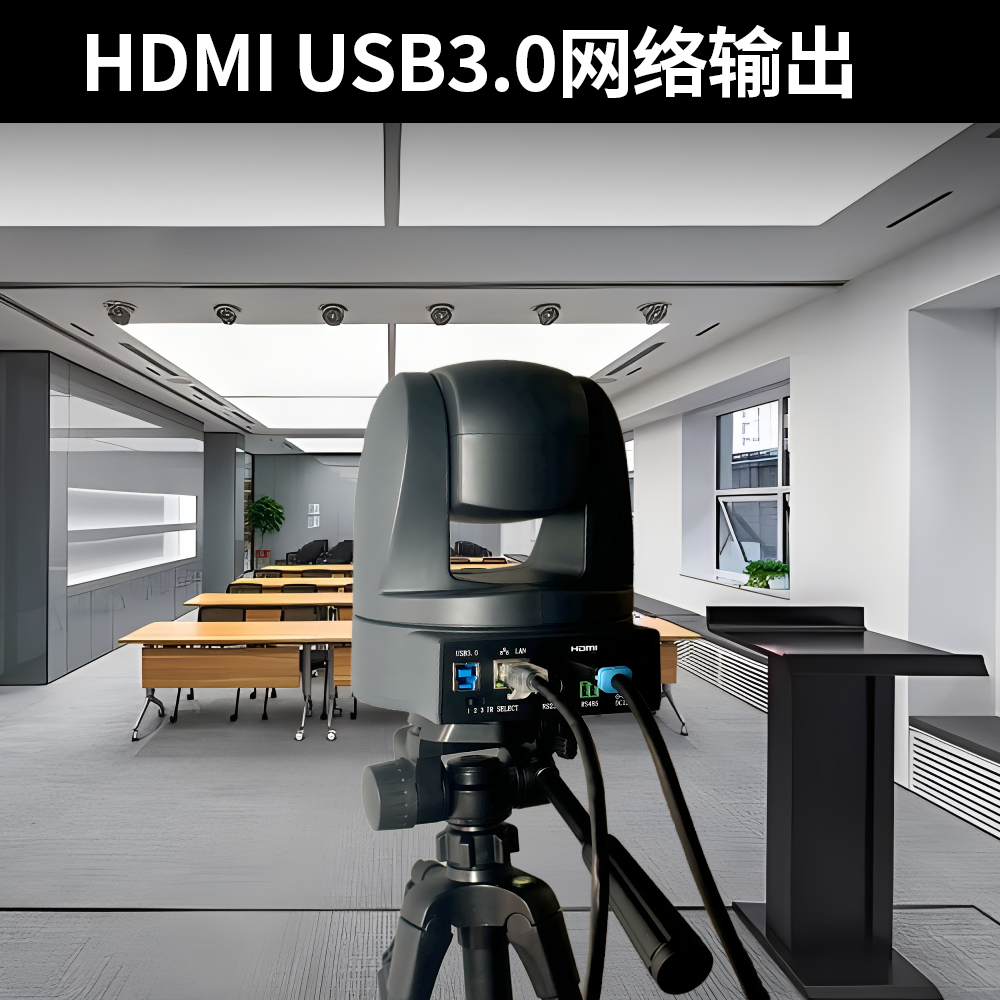

Professional Video Outputs

Supports HDMI,USB 3.0 4K@30fps

Remote Control

Controllable via RS232, RS485 and USB; supports VISCA/PELCO-D protocols.

professional conferencing camera

Multiple Installation Methods

Supports wall mounting, ceiling mounting, tripod installation, and desktop placement.

conference PTZ camera

Industry Applications

Corporate Video Conferencing

Ideal for boardrooms, hybrid meetings, enterprise systems.

Education & Lecture Capture

Perfect for classrooms, lecture halls, remote learning.

Live Streaming

For YouTube, Facebook Live, Twitch, corporate broadcast.

Houses of Worship

For sermons, worship teams, live church services.

Broadcast & Production Studios

TV studios, podcast, video production environments.

Government & Public Institutions

Courts, council chambers, training & public systems.

PTZ camera for church

conference PTZ camera Parameters

Model	SZ-VX20
Image Sensor	1/2.8″ CMOS SONY415
effective Pixel	8.29MP, 16:9
Lens	20X optical zoom
Focal length	f=5.9mm～118.0mm F1.8～F3.9
Angle of view	D:62.0°(W)～4.1°(T); H: 54.8°(W)～3.59°(T); V:31.5°(W)～2.03°(T)
Minimum illumination	0.1Lux
Gain	auto/manual
Focus	auto/manual
SNR	50 dB and above
Shutter speed	1/ 30s to 1/ 10, 000s
Preset	255 sets
Pan / Pitch Angle	-170 degrees ~ 170 degrees -30 degrees ~ 90 degrees
Pan / Pitch Speed	100degrees/s 80degrees/s
Control mode	RS232 (input only), RS485, USB3.0 C,RS-232,RS-485，USB
Control Protocol	VISCA,PELCO-D(RS-232,RS485)，UVC
UVC	Support UVC1.1~UVC1.5
Video Format	HDMI: 4K30/25、1080P60/50、1080P30/25、7200P60/50 USB3.0: YUV 1080P30，MJPG/H264/H265 4K30
HD output interface	HDMI ，USB3.0
AI	Automatic humanoid tracking
Linkage mode	P/T linkage/ EPTZ
Video Compression Format	H.264, H.265, MJPG, YUY2
Operation Systems	Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)
Operating temperature	-10 degrees to 50 degrees
Power supply	DC12V/1A
Dimension (W DH)	132144156mm / 260205230mm (Before/ After packing)
Accessory	1 x Camera; 1 x USB Cable; 1 x Power Adapter; 1 x IR Remote Control; 1 x Wall Mount; 1 x Manual

Download User Manual

Click the button below to download the full user manual for the 4K conference PTZ camera.

Download PDF Manual

Frequently Asked Questions

Q1: What’s the warranty period for this product?

A: We offer a 2-year warranty for all products, with lifelong technical support.

Q2: Do you provide OEM / ODM service?

A: Yes, we support OEM & ODM customization including logo, packaging, and functions.

Q3: What’s the MOQ and delivery time?

A: Sample order is acceptable. Bulk order lead time is normally 7-15 working days.

Q4: Is technical support available after purchase?

A: Yes, we provide professional technical support, user manual, firmware, and setup guidance.

Q5: Can I get a sample for testing before bulk order?

A: Yes, samples are available for quality test. We can send you a sample for evaluation.
