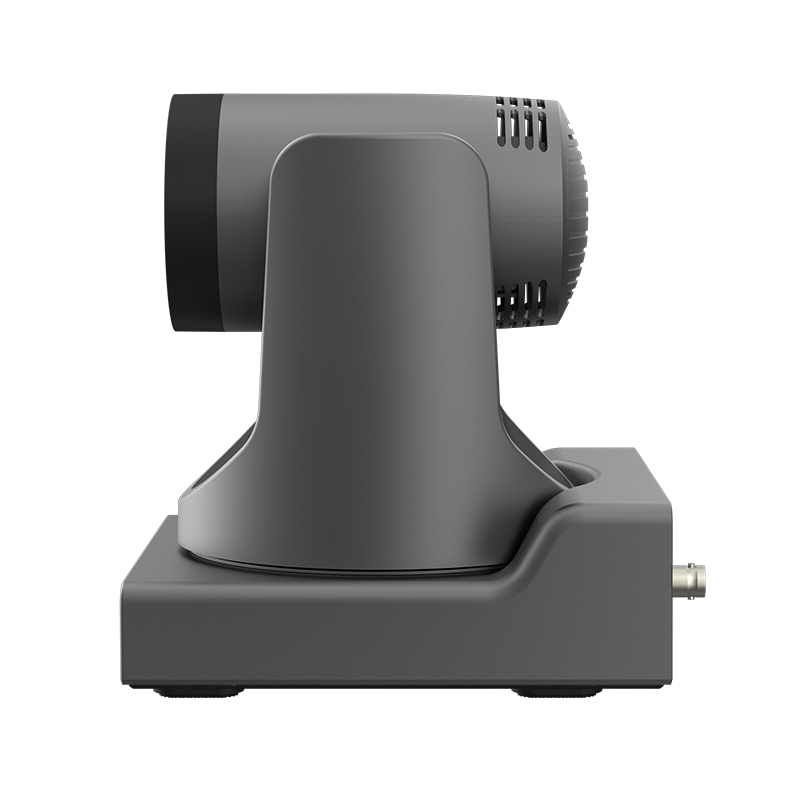

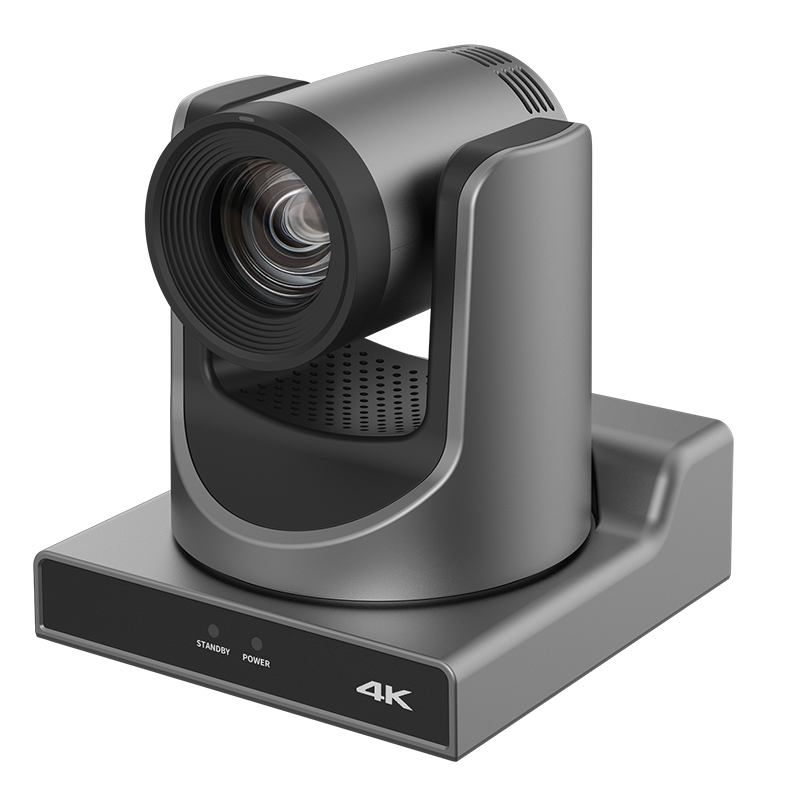

Professional 4K@60fps PTZ camera

Product

SZOOMSY SZS600L-20 is a professional 4K PTZ camera, featuring single-lens AI tracking, NDI®|HX2 support, 20x optical zoom and versatile interfaces, ideal for live streaming, video conferencing, education and corporate events.



Key Features

    • – ✓ Single-Lens AI Human Tracking for education, meetings and live streaming- ✓ NDI®|HX2 Support: Plug-and-play, low latency, simultaneous audio/video/control transmission- ✓ 4K UHD (3840×2160) with Sony 8.42MP UHD CMOS sensor, backward compatible with 1080P/720P

      – ✓ 20x Optical Zoom, 8MP ultra-high-resolution lens, 60° field of view

      – ✓ HDMI 2.0 Interface, direct uncompressed 4K@60fps output

      – ✓ Low-Light Performance: 3D noise reduction, SNR up to 55dB

      – ✓ Comprehensive Interfaces: HDMI 2.0, 3G-SDI (150m), USB, LAN (3-way simultaneous output)

      – ✓ Remote Control via RS232, RS485, Network & USB

      – ✓ Optional Built-in Gravity Sensor with automatic image flipping

Applications

Video Conference / Live Streaming / Online Teaching / Church Broadcast / Corporate Meetings / Education / Hybrid Events

分类： 标签： 品牌：

SZOMSY professional 4K@60fps PTZ camera  are designed for medium to large  meeting rooms and utilize larger UHD CMOS  sensors, delivering 4K (3840×2160) images.  Equipped with 20x ultra-long optical zoom  lenses and integrated with AI presenter tracking  algorithms, they achieve precise recognition and  tracking targets from any position in the venue.

4K Ultra HD Image Quality

The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840×2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions..



AI auto tracking PTZ camera

AI tracking

With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.

AI tracking conference camera

 NDI|HX2

NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.



NDI 4K PTZ camera

20x optical zoom

It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20 times optical zoom, and the maximum field angle is 60 °

4K PTZ camera 20x optical zoom



4K@60fps Resolution Sharp. Smooth. Cinematic

  • 1/1.8-inch 8.42MP UHD CMOS sensor for superior light sensitivity
  • Stunning 4K@60fps clarity with fluid, natural motion



conference PTZ camera

Rich and perfect interfaces

Support hdmi2 0 HD output, equipped with 3g-sdi interface, 3G-SDI effective transmission range up to 150 m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time.





Industry Applications

Corporate Video Conferencing

Ideal for boardrooms, hybrid meetings, enterprise systems.

Education & Lecture Capture

Perfect for classrooms, lecture halls, remote learning.

Live Streaming

For YouTube, Facebook Live, Twitch, corporate broadcast.

Houses of Worship

For sermons, worship teams, live church services.

Broadcast & Production Studios

TV studios, podcast, video production environments.

Government & Public Institutions

Courts, council chambers, training & public systems.































































































4K@60 UHD PTZ Camera Parameters

Model

SZS600L-20

Name

 4K PTZ Camera

Camera



Video System

HDMI：4K@60fps,4K@59.94fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps.
3G-SDI:1080p/60, 1080p/50, 1080p/30,
1080p/29.97, 1080p/59.94, 1080p/25;
1080i/60, 1080i/50, 1080i/59.94fps;
720p/60, 720p/59.94;

Sensor

1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels

Scanning Mode

Progressive scanning

Lens

20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95

Digital Zoom

16x

Minimal Illumination

0.5Lux @ (F1.8, AGC ON)

Shutter

1/30s ~ 1/10000s

White Balance

Automatic, indoor, outdoor, one touch, manual，VAR

Backlight Compensation

Supported

Digital Noise Reduction

3D digital noise reduction

Video S/N

≥55dB

Horizontal Angle of View

60° ~ 3.5°

Horizontal Angle of View

35.7° ~ 2.0°

Horizontal Rotation Range

±170°

Vertical Rotation Range

 -30° ~ +90°

Pan Speed Range

1.7° ~ 100°/s

Tilt Speed Range

1.7° ~ 69.9°/s

H & V Flip

Supported

Image Freeze

Supported

PoE

Supported

Number of Preset

255

Preset Accuracy

0.1°

USB Featured

USB2.0

Operate System

Windows 7, Windows 8, Windows 10, Windows 11, Mac OS X, Linux, Android

Color System / Compression

YUY2 / H.264 / MJPEG /H.265

Video Format

YUY2 :MAX 1080P@5fps
H.264 AVC: MAX 2160P@30fps
H.265 HEVC: MAX 2160P@30fps
MJPEG:MAX  2160P@30fps

Audio on USB

Supported

USB Video Communication Protocol

UVC 1.1~1.5

UVC PTZ

Supported

Network Features



Video Compression

H.265/H.264/MJPEG

Video Stream

First streaming, second streaming

Main Stream Resolution

3840×2160, 1920×1080, 1280×720, 1024×576等

Sub Stream Resolution

720×480, 320×240等

Video Bit Rate

32kbps~51200kbps（Second Way：32kbps~20480kbps）

Bit Rate Type

Variable bit rate，Fixed bit rate

Frame Rate

50Hz: 1fps~50fps, 60Hz:1fps~60fps

Audio Compression

AAC

Audio Bit Rate

96Kbps,128Kbps

Support protocols

NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on

Input/Output Interface



HD Output

1xHDMI:  2.0
Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps;
1080I@50/60/59.94/29.97fps； 720P@50/60/59.94fps
Remarks：4KP60 HDMI output only supports YUV420

1x3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424m standard.
Video format：1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps;
720P@50/60fps

Network Interface

1xRJ45: 10M/100M/1000M Adaptive Ethernet

Audio Interface

1-ch , 3.5mm Audio Interface, Line In；

1-ch , 3.5mm Audio Interface, Line Out；



1-ch，USB2.0, Type-A(Can be configured as Host or Device by software)

Communication Interface

1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P

1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol:  VISCA network use only

1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P

RESTORE

Support

Power Jack

JEITA type (DC IN 12V)

Generic Specification



Installation Direction

Mounting, Ceiling Mounting

Tally Lamp

1PCS (Red and Green)

Power Indicator

1PCS(Blue）

Status Indicator

1PCS (Yellow)

IR Remote Control

Support

Dial

Support

Input Voltage

DC 12V /POE+

Input Cur

 2A（MAX）

Operating Temperature

0°C ~ 40°C

Storage Temperature

-40°C ~ 60°C

Power Consumption

MAX 18W

Size

169mm x 142mm x 175mm

Net Weight

About 1.5Kg

Download User Manual

Click the button below to download the full user manual for the 4K@60 NDI PTZ Camera.

Download PDF Manual

Frequently Asked Questions

Q1: Does the 4K PTZ Camera support NDI®|HX2?
A: Yes, the SZS201-21N 4K UHD PTZ Conference Camera features native NDI®|HX2 support for low-latency, high-quality IP video workflows.

Q2: Which platforms is the 4K UHD PTZ Conference Camera compatible with?
A: The 4K PTZ Camera works with OBS, vMix, Zoom, Microsoft Teams, Skype, VLC, and most major streaming and conferencing platforms.

Q3: Does the 4K PTZ Camera support AI auto-tracking?
A: Yes, the 4K UHD PTZ Conference Camera comes with built-in AI human tracking that automatically follows presenters and speakers smoothly and accurately.

Q4: What video outputs are available for the 4K UHD PTZ Conference Camera?
A: The 4K PTZ Camera supports HDMI, USB 3.0, and IP streaming outputs simultaneously.

Q5: Is PoE supported for the 4K PTZ Camera?
A: Yes, PoE (Power over Ethernet) is available as an optional feature for the 4K UHD PTZ Conference Camera, enabling simplified installation.

Q6: Can I control the 4K UHD PTZ Conference Camera remotely?
A: Yes, the 4K PTZ Camera supports VISCA, RS232, RS422, UVC, and IP remote control protocols for convenient remote operation.

Q7: Is the 4K PTZ Camera suitable for live streaming?
A: Absolutely. The SZS201-21N 4K UHD PTZ Conference Camera is designed for professional live streaming, hybrid events, church production, and online broadcasting.

Q8: What applications is this 4K UHD PTZ Conference Camera best suited for?
A: The 4K PTZ Camera is ideal for video conferencing, education, churches, live streaming, corporate meetings, healthcare, and broadcast production.

Q9: Do you support OEM & ODM customization for the 4K PTZ Camera?
A: Yes, we provide OEM/ODM services for the 4K UHD PTZ Conference Camera, including logo printing, firmware customization, packaging, and feature customization.

Q10: What is your MOQ for the 4K UHD PTZ Conference Camera?
A: Sample orders for the 4K PTZ Camera are supported. Please contact our sales team for bulk order MOQ details.

Q11: What is the lead time for mass production of the 4K PTZ Camera?
A: Standard lead time for the 4K UHD PTZ Conference Camera is typically 7–15 working days depending on order quantity and customization requirements.

Q12: Do you provide technical support for the 4K UHD PTZ Conference Camera?
A: Yes, we provide professional technical support for the 4K PTZ Camera, including firmware updates, user manuals, and integration assistance.

Q13: Can I test a sample of the 4K PTZ Camera before placing a bulk order?
A: Yes, sample units of the 4K UHD PTZ Conference Camera are available for evaluation and compatibility testing.

Q14: Which certifications are available for the 4K UHD PTZ Conference Camera?
A: CE, FCC, and RoHS certifications are available for the 4K PTZ Camera depending on the product configuration.

Q15: Do you support global shipping for the 4K PTZ Camera?
A: Yes, we support worldwide shipping for the 4K UHD PTZ Conference Camera and offer long-term distributor partnerships.
