Multi Camera PTZ Controller with Video Preview

SZOOMSY SK70 is a professional multi camera PTZ controller with a 7-inch touchscreen, real-time video preview and multi-view monitoring. Designed for centralized PTZ camera control in broadcast, church, conference, education and live production systems.

Key Features

✓ 7-inch touchscreen with real-time video preview
✓ H.264 / H.265 video decoding
✓ Up to 9-screen multi-view monitoring
✓ 4K, 1080P and 720P video decoding
✓ Precision joystick PTZ camera control
✓ HDMI, PoE, RS232 and RS422/RS485 connectivity

Application Fields

Church Streaming / Broadcast / Conference Rooms / Education / Live Production

Category: Tag: Brand:

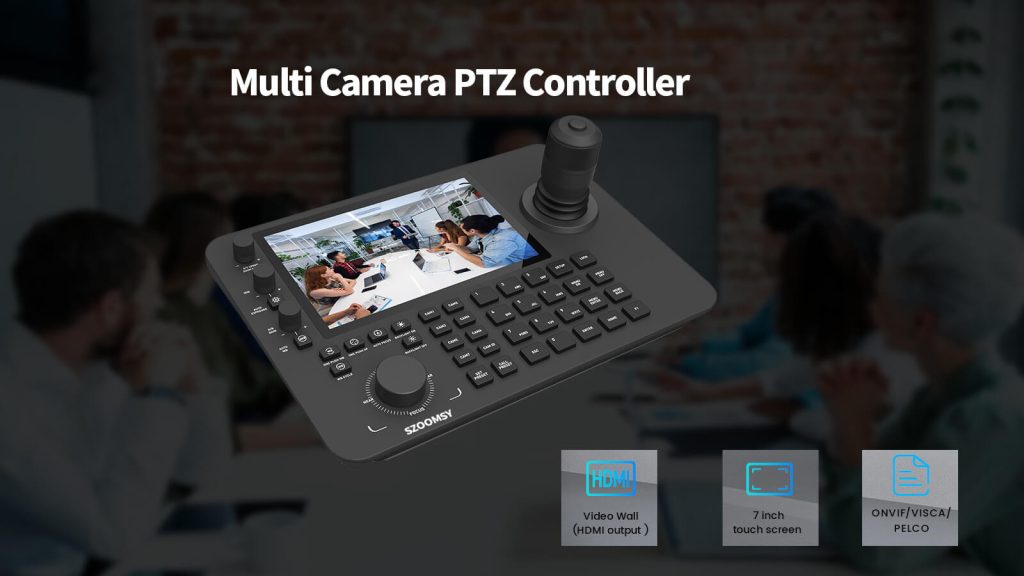

Multi Camera PTZ Controller with Video Preview

7-Inch Touchscreen • Multi-View Monitoring • Professional PTZ Control

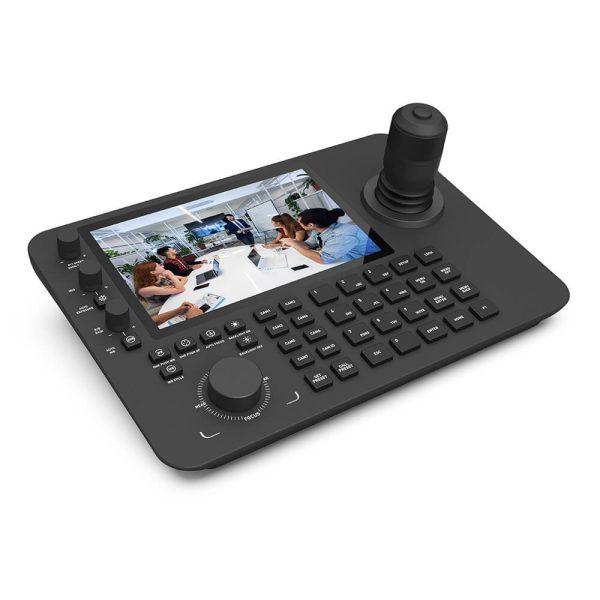

ZOOMSY multi camera PTZ controller with 7-inch touchscreen and video preview

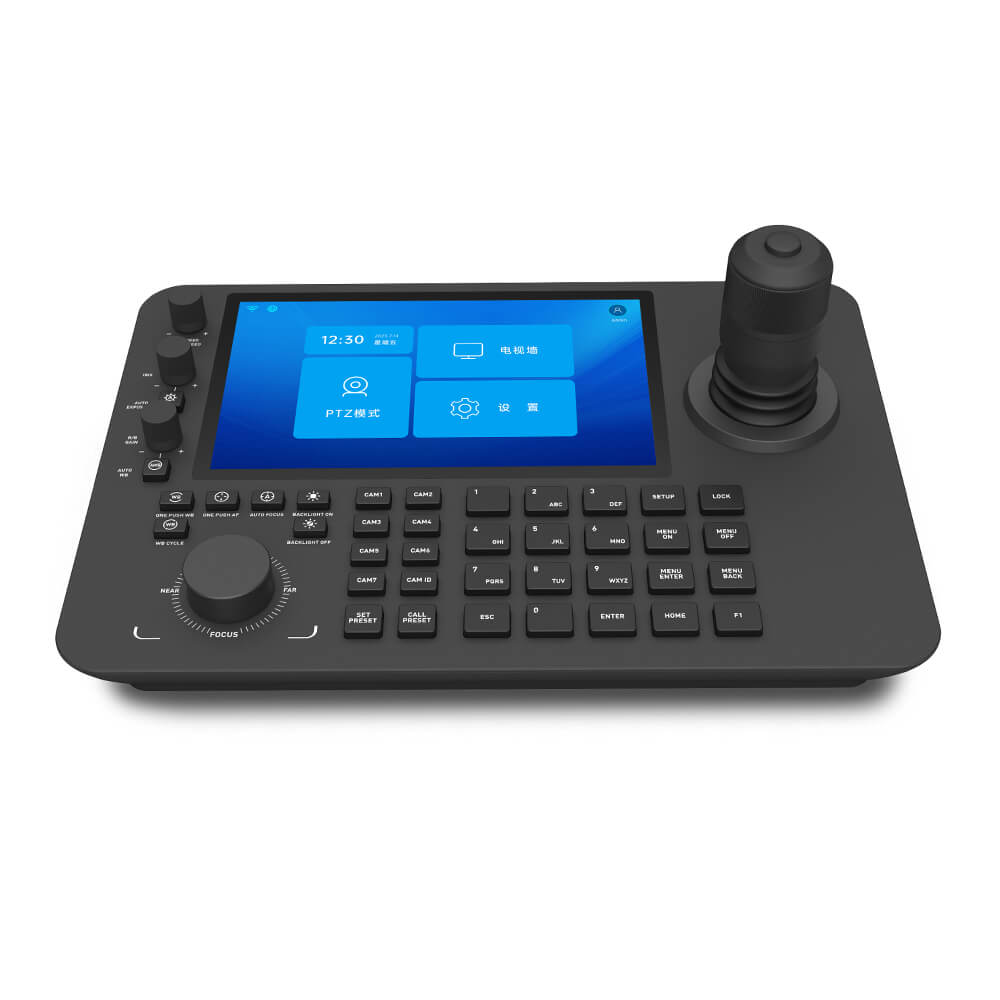

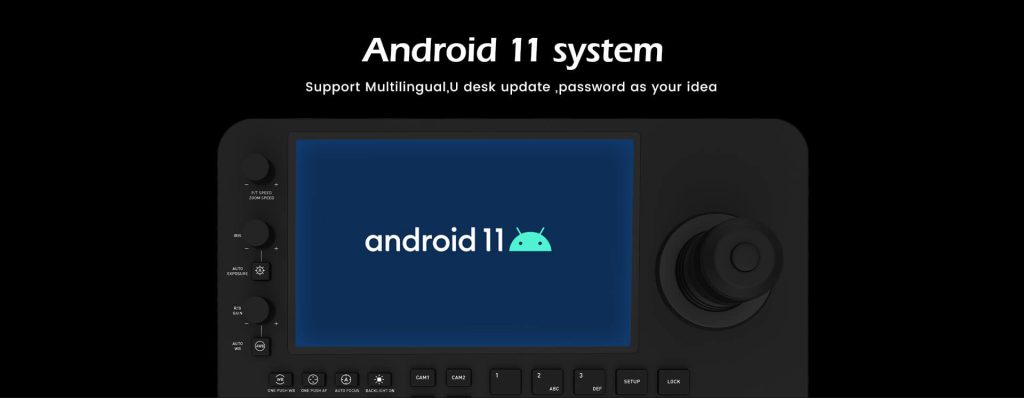

Built on Android 11

The 7-inch touchscreen runs on Android 11, with multilingual menus, system updates and password settings available directly on the controller.

PTZ camera controller with Android 11 system and touchscreen interface

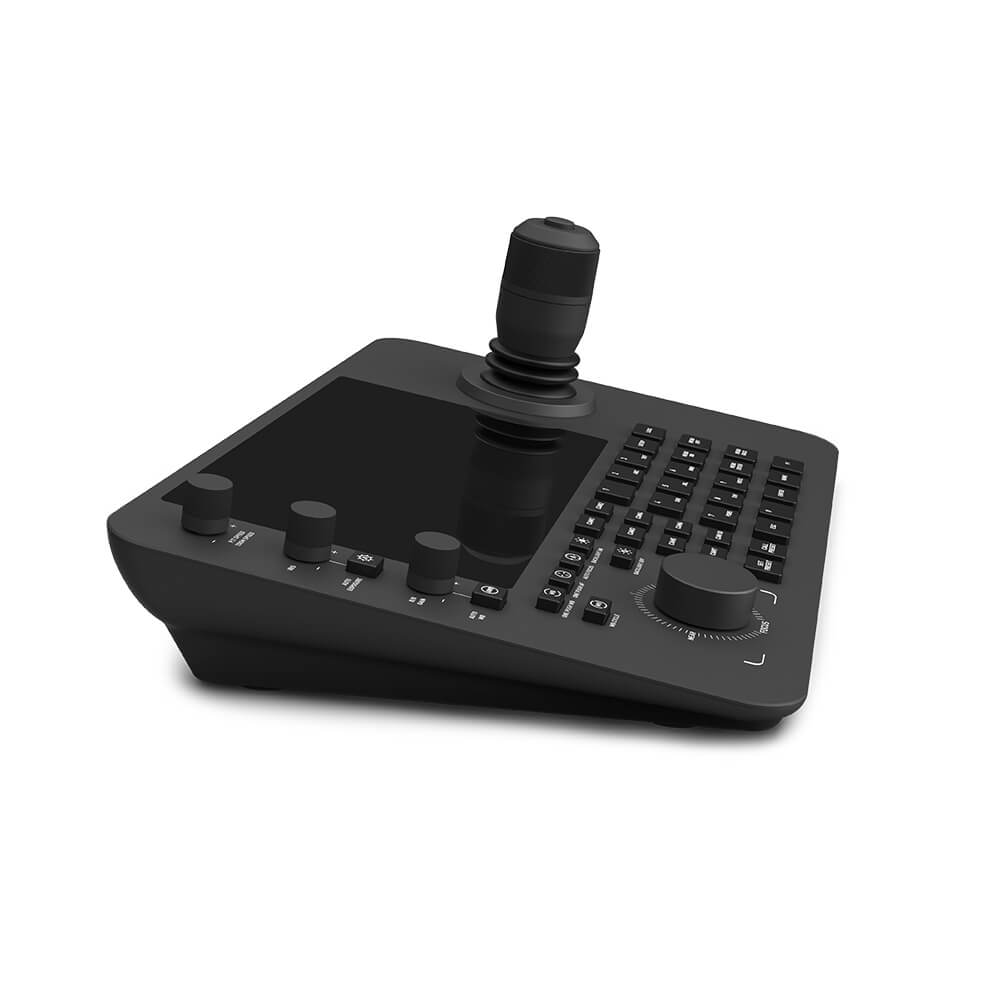

Monitor Multiple Cameras on One Screen

Switch between camera feeds or keep several sources visible at once. The controller supports different preview layouts depending on the incoming video resolution

Multi camera PTZ controller supporting multi-channel video preview and centralized PTZ camera management

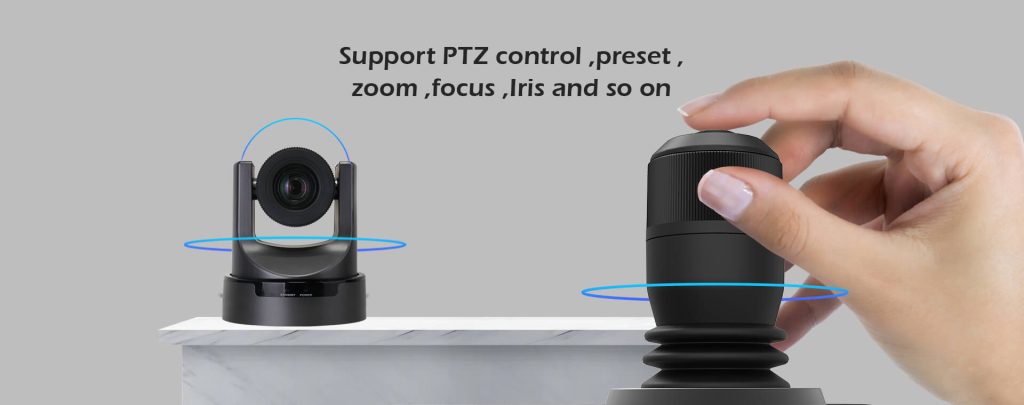

Hands-On PTZ Control

Use the joystick and control knobs to adjust camera movement, zoom, focus and iris without going back to a computer.

PTZ joystick controller for pan, tilt, zoom, focus, iris and preset camera control

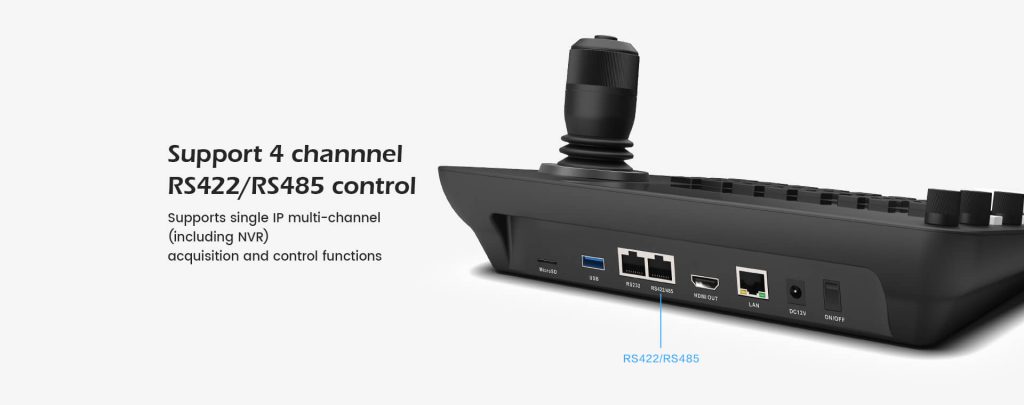

RS422 RS485 PTZ Camera Controller

PTZ camera controller with RS422/RS485 control, RS232, LAN, HDMI output

PTZ camera controller with RS422 RS485, RS232, LAN, HDMI, USB and MicroSD interfaces

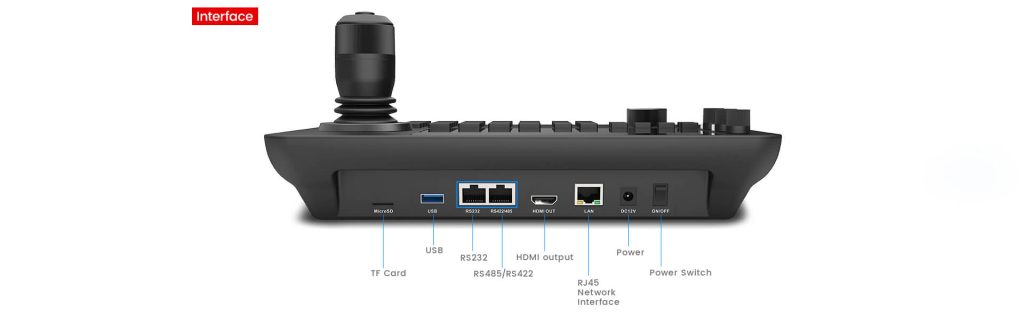

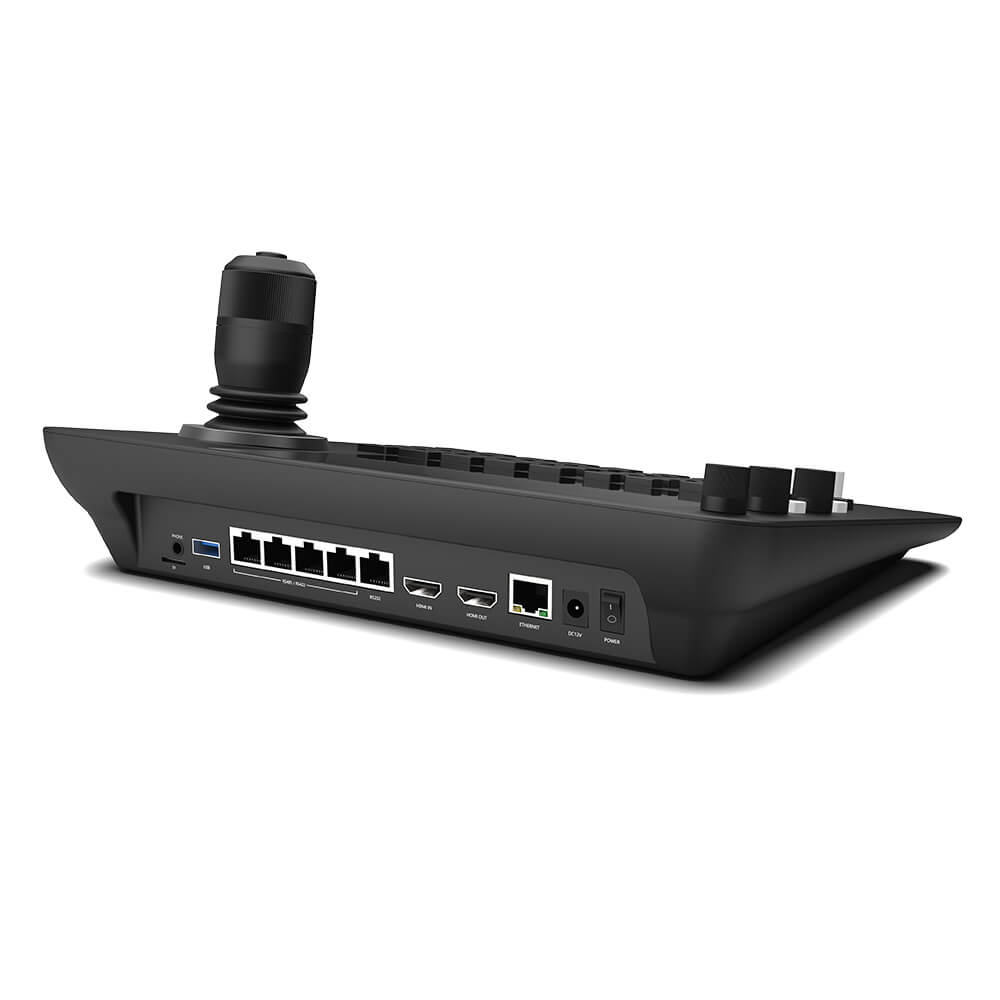

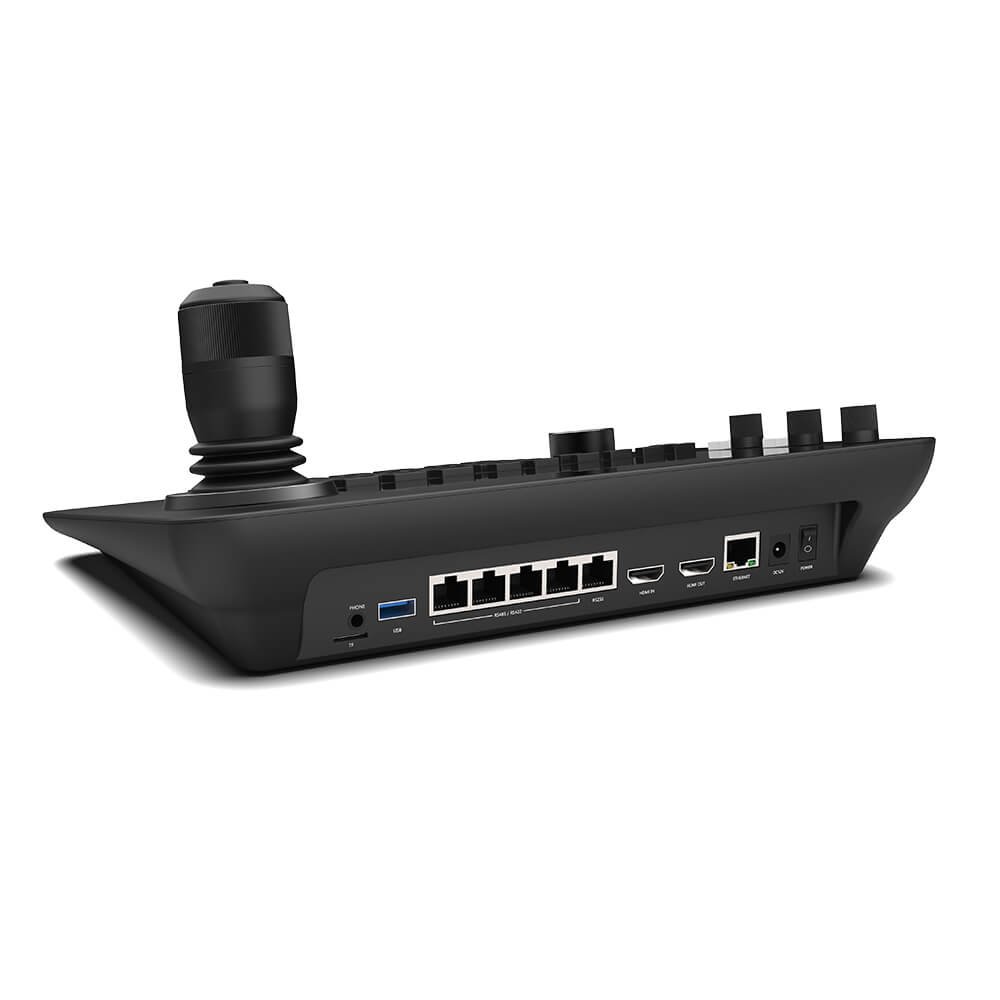

Connections for IP and Serial Camera Systems

Connect cameras over the network or through RS232 and RS422/RS485. HDMI output, USB and a microSD card slot are also available on the rear panel.

PTZ camera controller with MicroSD, USB, RS232, RS422/RS485, HDMI and LAN connections

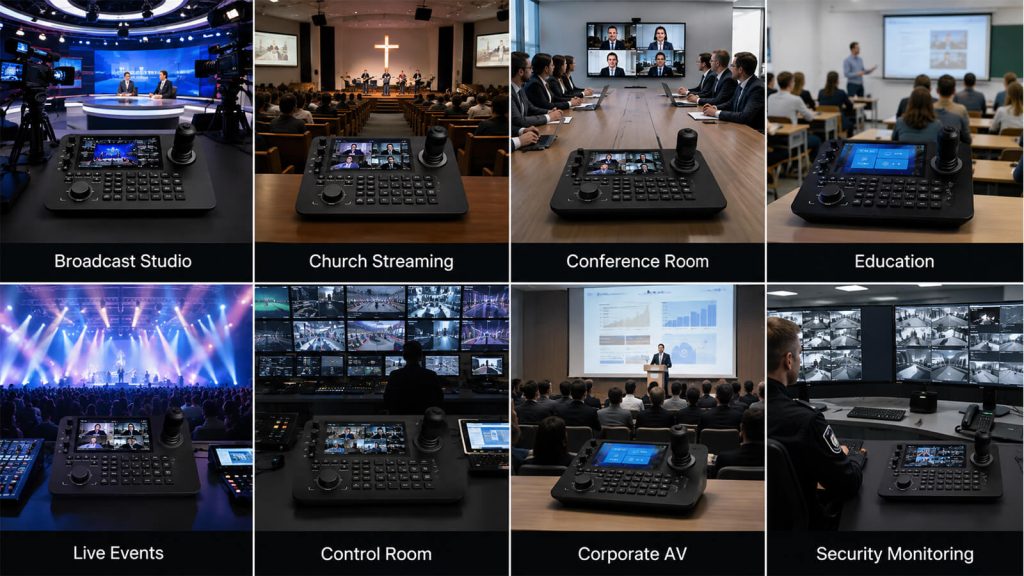

Made for Multi-Camera Workflows

A practical fit for studios, churches, meeting rooms, classrooms, live events and other installations where several PTZ cameras need to be managed from one desk.

PTZ camera controller for broadcast studios, church streaming, conference rooms, education, live events and control rooms

Technical Specifications

Parameter/Model

SK70 PTZ controller

Operating System

Android 11

Screen Size

7-inch screen, resolution 1024*600 capacitive touchscreen

Display

Supports HDMI 4K@30fps



Decoding capabilities
  • 1) Supports H.264/H.265 2) Maximum support for H.264 4x1080p@30fps
  • 3) Maximum support for H.264 16x720p@30fps 4) Maximum support for H.265 1x4K@60fps

Protocol

Supports ONVIF 2.8 version, customizable.



Function
  • 1) Supports a maximum of 2408 devices 2) Supports preset positions 3) Supports PTZ control
  • 4) Supports patrol mode 5) Supports snapshot recording 6) Supports pattern scanning

System settings

Supports language settings; supports password modification; supports USB upgrade.

Power

Standard 5.5/2.1 power interface, DC 12V2A±10%.







Interface

One RJ45 (Network/PoE) One RS485/RS422 (RJ45)

One RS232 (RJ45)

One HDMI interface (HDMI OUT) One USB port

One Micro SD card slot

Operating interface

Four-dimensional gimbal control joystick, focus slider, knob support, button support.

Power consumption

Less than 1.5W.

Mean Time Between Failures (MTBF).

> 30,000 hours.

Operating Humidity

10%-90% RH (No frost).

Operating Temperature

-10°C- 50°C

Storage Temperature

-40°C- 60°C

Inner Packaging Dimensions

365*245*155mm (External Dimensions).

Net Weight

1781g/unit

Download User Manual

Click the button below to download the full user manual for the 4K PTZ Camera.

Download PDF Manual

Frequently Asked Questions

Q1: What PTZ cameras can I use with this controller?
A: The controller works with PTZ cameras using common control protocols such as ONVIF, VISCA, Pelco-P and Pelco-D. For third-party cameras, we recommend checking the camera protocol and control settings before installation.

Q2: Can I preview multiple PTZ cameras on the controller?
A: Yes. The built-in 7-inch screen can be used for video preview and multi-camera monitoring, so you can check camera feeds while operating the system without relying on a separate monitor.

Q3: Can I control cameras over both IP and serial connections?
A: Yes. Cameras can be controlled over the network or through RS232 and RS422/RS485 connections. This makes the controller easier to integrate into both IP-based and traditional PTZ camera systems.

Q4: Is this controller suitable for large multi-camera installations?
A: Yes. It is designed for centralized camera operation in setups such as broadcast studios, churches, conference rooms, classrooms, live events and control rooms. Camera movement, zoom, focus, iris and presets can be managed directly from the controller.

Q5: Do you provide technical support for setup and integration?
A: Yes. We provide user manuals, setup guidance and technical support for camera connection and configuration. If you are planning a larger system, you can also contact us before ordering to check compatibility.
